Belec Vario Lab

Flexibility and Precision Combined

Belec has completely redesigned the laboratory spectrometer for metal analysis. It is – again- the most competitive in terms of flexibility as far as sample size and shape is concerned.

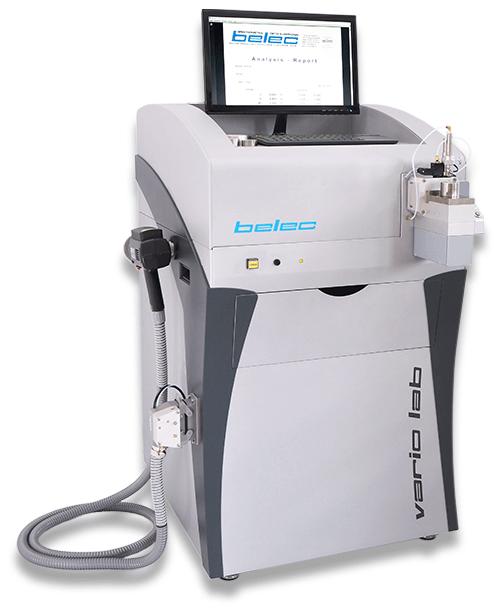

The Belec Vario Lab can optionally be equipped with a connectable sparking probe.

Thanks to a more powerful plasma generator and lower argon consumption, operating costs are significantly reduced while the analysis times per sample are shortened. The new argon control system for the sparking stand surprisingly minimizes maintenance requirements a lot.

The Belec Vario Lab impresses with its exceptional performance!

The compact design allows for transport through standard doors, and the high-stability plastic housing significantly reduces weight. The integrated and dynamic material database is standard, as it has been for ever since in all Belec spectrometers. This ensures automatic material identification with every analysis. The grade database can unlimited be extended with national and international grades and can certainly also be customized.

Request your individual quotation:

To Inquiry

Product features

Brief summary

highest analysis accuracy and precision
maximum long term stability
low detection limits
virtually no limitations in terms of sample size and shape
robust laboratory spectrometer
flexibility through manifold equipping options
free accessible sparking stand for larger samples
operator friendly Analysis Program Belec Win21
integrated dynamic alloy database
base specific drift correction samples included
installation and instruction by qualified personnel
very low operating costs

Download brochure

Technical Specifications

Optic

spectrometer in Paschen-Runge mounting
Rowland circle diameter 500 mm
usable wavelengths 120-430 nm
grating 3600 lines/mm
reciprocal dispersion 0,52 nm/mm (1st order)
shock resistance
photomultiplier detector systems are ±0.1°C temperature stabilised for excellent long-term stability
optionally 2nd spectrometer optics*
up to 11 bases and 108 measuring channels possible
inert gas-breathed optical chamber with gas purifier system
optional optic with usable wavelengths up to 800 nm*

Vacuum System*

2 stage rotary vacuum pump
large oil separator
oil vapor trap
vacuum gauge in front panel

Source

sparking generator with maximum 400 Hz frequency
unipolar discharge
separate parameter for pre-sparking and integration selectable via software
ignition frequency program specifically selectable via software
discharge power program specifically selectable via software
arc source for air probe, optional
ignition voltage 20 kV

Measuring Stand

argon-flushed measuring stand for exact analysis
sparking stand grounded with Ø 10 mm analysis opening
optional ceramic disc with Ø 4mm opening*
adapters for wires, pipes and small parts are available
low-wear tungsten electrode
pneumatic sample clamping
argon flow 0,1 l/min in stand-by mode and 2 l/min during analysis
low maintenance required

Electronics (Model 2P)

stabilized high voltage
zero-stabilized analogue amplifier
6-decade dynamic A-D converter for each channel
48 channels with digital integration, configurable for several bases

Electronics (Model 2C)

15 detectors, each with 3648 pixel, 7µ pixel width
individual AD- converter board for each detector, mounted on multi channel board,
coupled by high-speed port
Integrated noise suppression - integrated background compensation
Unlimited numbers of measuring channels, configurable for several base

Probes

argon-flushed sparking probe for exact analysis, including carbon
argon flow 0,1 l / min in standby and 2,5 l / min during analysis
argon control on cable plug
air probe for quick mix-up checking
adapters for wires, pipes and small parts available for all probes
lightweight shockproof plastic probe housing
start and clear buttons easily hand-operated
signal on mix-up identification: visual display for “repeat” and “reject”, start button is blocked until confirm
button is pressed
multi fibre quartz optics, standard lengths 3m or 5m
low-wear tungsten electrode
silver electrode for air probe
probe connector system

Dimensions and Weight

width 680 mm
height 1135 mm
depth 945 mm
analysis unit 80 kg

Power Supply

230V/50Hz or 110V/60Hz
100 W in stand-by mode
600 W during analysis

with optional vacuum system
600 W in stand-by mode
1100 W during analysis

Computer Hardware

System-integrated industrial computer system with Intel© Pentium® J6426, up to 3.00 GHz
Random access memory 8GB/16GB
Hard disk 64GB eMMC + 128/256 GB SATA SSD.M2 (Solid-State-Drive)
Intel© UHD graphic with DP output
21,5” colour display with touch, other monitors on request
Special dust and moisture protected keyboard integrated in hinged lid
USB 2.0 port
Ethernet interface RJ 45, 1 Gigabit Ethernet Controller
Internal serial interface, external port as option
Operation system Microsoft Windows® 11Enterprise LTSC with client specific regional and language settings
Remote-Service-System (RSS) by Teamviewer©

Belec WIN 21 Analysis and Quality Control Program

Software

Belec WIN 21 analysis and quality control program
display of analysis values at each measurement
as many analysis programs to customer specifications as required
individual analysis parameters for each program
automatic program selection (APF) optional
analysis computation with: background correction, curve position correction, additive and multiplicative inter-element correction
automatic correction with standard types
easy and simultaneous recalibration of several programs (BGR)
significantly extended recalibration cycles by use of MCDC ( Multi Channel Drift Correction)
mix-up checking by comparison with reference measurement
grade checking by comparison with analysis regulations
type calibration and type measurement
tolerances for every analysis program and element in absolute and relative weight percentages, individually adjustable
average and standard deviation from chosen measurements
warning signal, when calibration curve is exceeded
automatic reminder on regular recalibration
automatic display of alloy description or material number
Integrated, dynamic alloy database, 100.000 alloy data and more storable (only limited by computer storage capacity)
text size on monitor variable for optimum legibility
protocol storage function
report memory function for later analysis, printing and archiving
several statistic functions with graphical representation

Belec Vario Lab

The Belec Vario Lab is one of the most powerful spectrometers of its kind.

Thanks to a simple operating interface and Software Belec WIN 21 there are virtually no limitations. Any program feature can easily be selected and configured according to customer specific applications.

The fields of application are not limited. Whether in the laboratory or workshop – there is no location that can not be considered.

Ideal Working Conditions

The attractive design of the Belec Vario Lab ensures an ergonomic set-up of the spectrometer at a comfortable working height. The drawer has enough space to accommodate user tools, drift correction samples and other accessories.

Get your Belec Vario Lab in the different versions: as inert gas- breathed, vacuum-operated or even air spectrometer, depending on the application.

Two Models to select,
depending on your needs

The variation, Model 2P, equipped with the traditional, highly sensitive Photomultiplier detectors, is the ideal tool whenever maximum precision, accuracy and low limit of detection are essentially required.

The second variation, the Model 2C, is equipped with the latest-state-of art CCD detectors.
Due to the flexible design it is recommended for any multi-base application.

The well established 6GSO system, already used in other belec spectrometers ensures the uncompromising use of ideal spectral lines.

The need for daily recalibration is a thing of the past due to the MCDC system which automatically corrects spectral line drift.

Universally Applicable with additional Probe

An additional Sparking Probe can further enhance the functionality of the instrument.

For the analysis of big, bulky or indestructible samples, you can use one of our sparking probes. With this unique option, the Belec Vario Lab covers all possible applications for metal analysis.

Accessories of Belec Vario Lab

Belec offers a number of accessories, both for mobile use at different places and localized use of the stationary instruments.

Whether sparking probes for mobile use with the Belec Compact Port HLC or in addition to the sparking table of the Belec Vario Lab - get to know more about our additional solutions for your individual requirements.

A number of adapters allow the testing of most different sample types as wires, tubes or other small parts. Due to especially developed adapters they can be analysed without any problems.

Furthermore, we offer our customers other solutions which exactly match with their applications.
